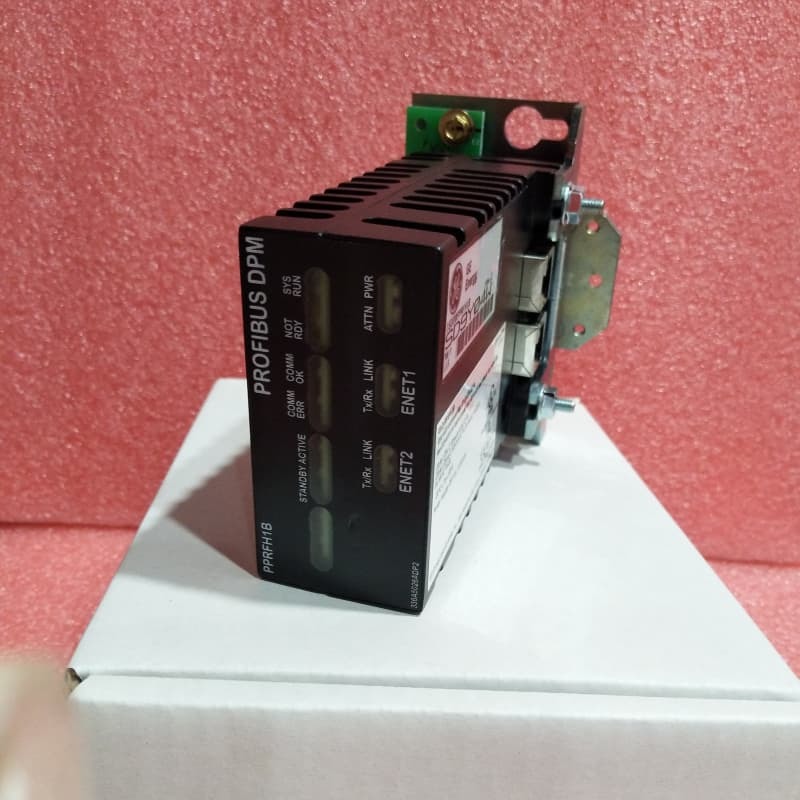

GE IS220PPRFH1A PROFIBUS Master Gateway Pack for Mark VIe
| Plaats van herkomst | VS |
|---|---|
| Merknaam | GE |
| Certificering | COO |
| Modelnummer | IS220PPRFH1A |
| Min. bestelaantal | 1 |
| Prijs | $9000 |
| Levertijd | 5-7 dagen |
| Betalingscondities | T/t |
| Levering vermogen | 999 |
Contacteer me voor vrije steekproeven en coupons.
Whatsapp:0086 18588475571
wechatten: 0086 18588475571
Skypen: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| naam | GE IS220PPRFH1A PROFIBUS Master Gateway Pack | Product -ID | IS220PPRFH1A |
|---|---|---|---|
| Serie | Mark VI | Productnethoogte | 200 mm |
| Productnetbreedte | 100 mm | Product netto diepte/lengte | 330 mm |
| Productnetgewicht | 2 kg | Garantie | 1 jaar |
| Markeren | GE Mark VIe PROFIBUS gateway,PROFIBUS Master Gateway Pack,GE turbine control gateway |
||
Productomschrijving
GE IS220PPRFH1A PROFIBUS MASTER GATEWAY PACK
| Attribute | Value |
|---|---|
| Name | GE IS220PPRFH1A PROFIBUS MASTER GATEWAY PACK |
| Product ID | IS220PPRFH1A |
| Series | Mark VI |
| Product Net Height | 200mm |
| Product Net Width | 100mm |
| Product Net Depth/Length | 330mm |
| Product Net Weight | 2kg |
| Warranty | 1 Year |
Product Details
The GE IS220PPRFH1A is a PROFIBUS Master Gateway Pack part of the Mark VIe Series, compatible with Mark VI, Mark VIe, and Mark VIeS systems. As a PROFIBUS DPV0 Class 1 master, it bridges PROFIBUS slave devices and Mark VIe Ethernet controllers, mapping I/O data via a Hilscher COM-C module. Part of the HazLoc subseries, it is certified for hazardous and non-hazardous locations, making it suitable for gas, steam, and wind turbine control in harsh industrial environments.
Key Features

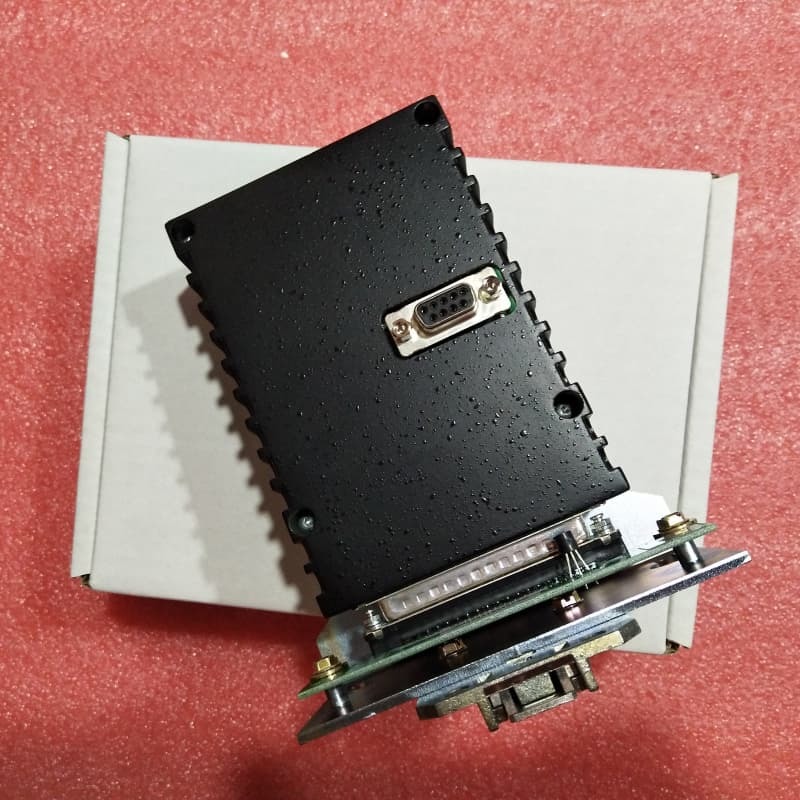

- PROFIBUS Functionality: Acts as a DP master with transmission rates from 9.6 KBaud to 12 MBaud, supporting up to 125 slaves via a DE-9 D-sub RS-485 interface.
- Redundancy Options: Supports simplex, dual Ethernet on a single pack, or hot-backup with automatic failover from active to standby master.
- Installation & Connectivity: Mounts on SPIDG1A terminal boards with secure mechanical fastening; uses dual Ethernet ports and a 3-pin power input with soft-start current limiting. PROFIBUS cables connect to the DE-9 port, requiring proper termination.
- Hardware & Certification: Operates at 27.4-28.6 VDC with max 0.18 ADC current; temperature range -20 to 55°C. Certified for hazardous locations and non-hazardous areas.
- Configuration: Configurable via ToolboxST software; integrates a shared Mark VIe processor board and acquisition carrier board for seamless communication and diagnostics via LED indicators.
