GE IS215UCCCM04A VME Controller Card for Mark VIe Turbine
| Place of Origin | USA |
|---|---|
| Merknaam | GE |
| Certificering | COO |
| Model Number | IS215UCCCM04A |
| Minimum Order Quantity | 1 |
| Prijs | $21500 |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999 |
Contacteer me voor vrije steekproeven en coupons.
Whatsapp:0086 18588475571
wechatten: 0086 18588475571
Skypen: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Name | GE IS215UCCCM04A VME Controller Card | Product ID | IS215UCCCM04A |
|---|---|---|---|
| Product Net Weight | 2kg | Series | Mark VI |
| Product Net Width | 100mm | Product Net Height | 200mm |
| Product Net Depth/Length | 330mm | Warranty | 1 Year |
| Markeren | GE Mark VIe VME controller card,turbine control VME card,GE IS215UCCCM04A controller |
||
Productomschrijving
GE IS215UCCCM04A VME Controller Card
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS215UCCCM04A VME Controller Card |
| Product ID | IS215UCCCM04A |
| Product Net Weight | 2kg |
| Series | Mark VI |
| Product Net Width | 100mm |
| Product Net Height | 200mm |
| Product Net Depth/Length | 330mm |
| Warranty | 1 Year |
Product Overview

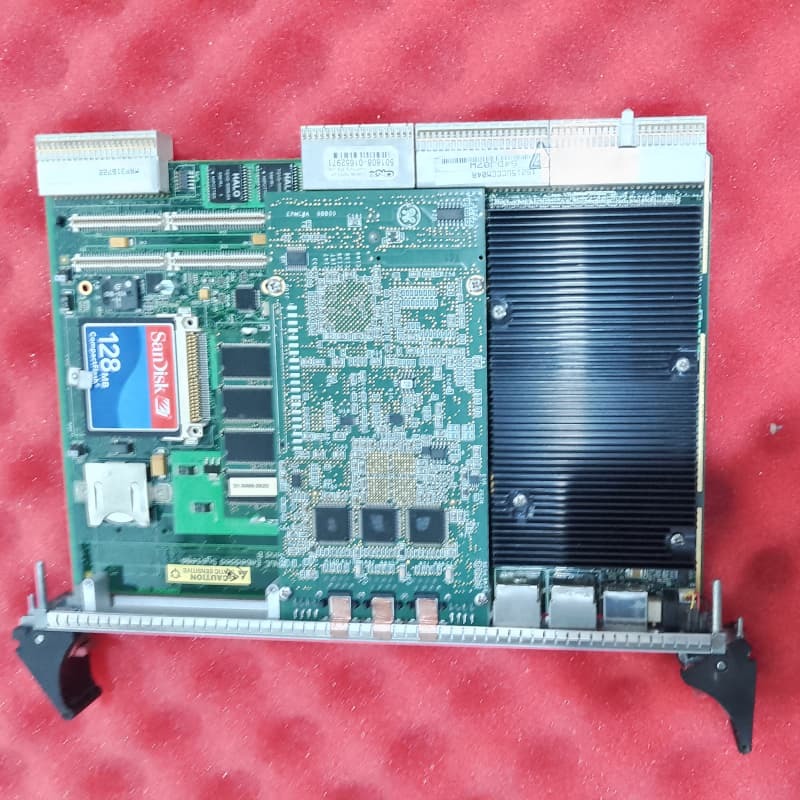

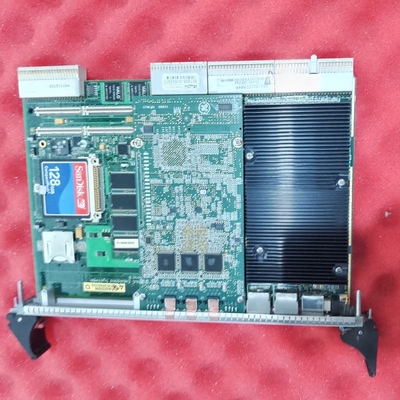

The GE IS215UCCCM04A is a VME Controller Card and core module in the Speedtronic Mark VIe gas turbine control system, integrating the IS215UCCC H4 base board, 128 MB flash memory, 256 MB DRAM, and the IS200EPMC daughter board. Often referenced as a CPCI 3U compact PCI device, it serves as a processing hub for real-time control and data management in gas turbine operations.

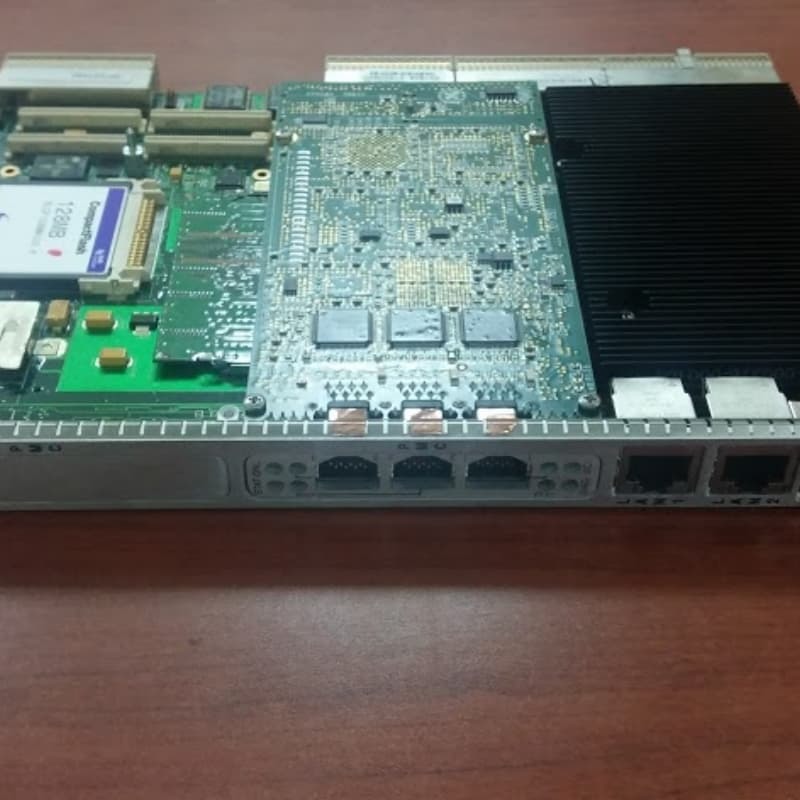

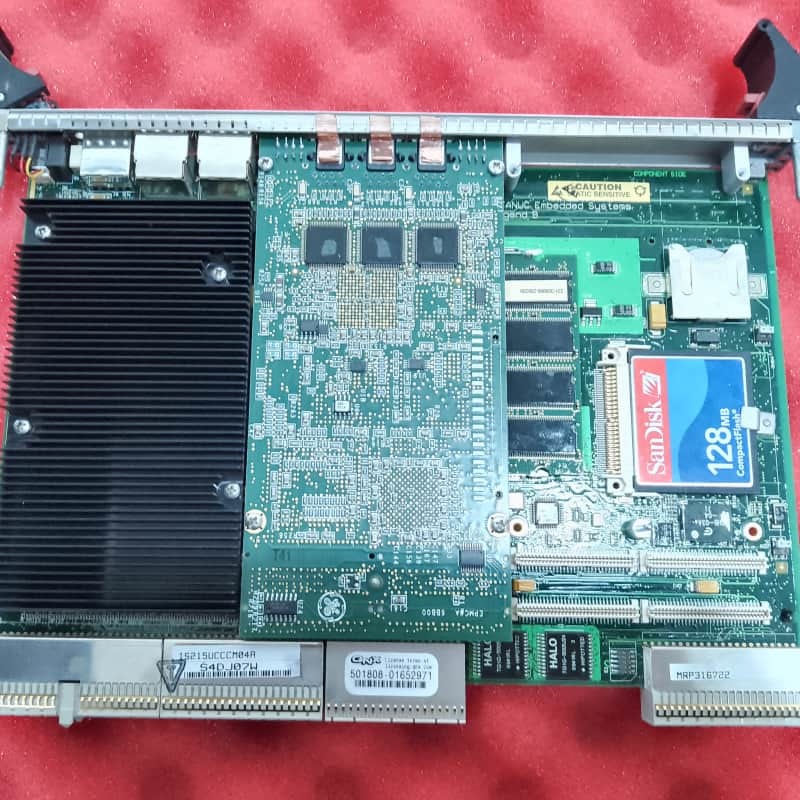

Its front faceplate features six labeled Ethernet ports for targeted connectivity, status LEDs for operational feedback, and a reset button for quick system recovery. Secured by rear male terminals and dual faceplate clasps, the card incorporates energy-storing capacitors, energy-regulating resistors, and a 128 MB SD card for data storage. Key components include microchips, a large slotted heatsink for thermal management, and interference suppressors to mitigate external electrical noise.
Key Features
- Mark VIe Integration: Central to the gas turbine control system, combining base board, memory, and daughter board for seamless operation.
- Processing & Storage: 128 MB flash (non-volatile storage) and 256 MB DRAM (volatile processing) support complex control algorithms.
- Connectivity: Six labeled Ethernet ports enable structured communication with system modules, sensors, and upper systems.
- Durability & Stability: Heatsink prevents overheating; interference suppressors shield against radio/cell phone interference for reliable performance.
- Power Efficiency: Operates on +5V DC (4.5A typical/6.75A max), +3.3V DC (1.5A typical/2.0A max), and +12V DC (50mA max), with tight voltage tolerances.
- User-Friendly Design: Front LEDs and a reset button simplify diagnostics and troubleshooting; secure mounting ensures stability in industrial environments.
