GE IS200TBTCH1C Thermocouple Input Terminal Board for Turbine Control
| Place of Origin | US |
|---|---|
| Merknaam | GE |
| Certificering | COO |
| Model Number | IS200TBTCH1C |
| Minimum Order Quantity | 1pc |
| Prijs | $5000 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999pcs |
Contacteer me voor vrije steekproeven en coupons.
Whatsapp:0086 18588475571
wechatten: 0086 18588475571
Skypen: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Name | GE IS200TBTCH1C Thermocouple Input Terminal Board | Product ID | IS200TBTCH1C |
|---|---|---|---|
| Series | Turbine Specific Primary Trip Board | Function | Thermocouple Input Terminal Board |
| Product Net Depth/Length | 330mm | Product Net Height | 200mm |
| Product Net Width | 100mm | Product Net Weight | 2kg |
| Warranty | 1year | ||
| Markeren | GE turbine control thermocouple terminal board,IS200TBTCH1C thermocouple input board,turbine control thermocouple input module |
||
Productomschrijving
GE IS200TBTCH1C Thermocouple Input Terminal Board
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS200TBTCH1C Thermocouple Input Terminal Board |
| Product ID | IS200TBTCH1C |
| Series | Turbine Specific Primary Trip Board |
| Function | Thermocouple Input Terminal Board |
| Dimensions (L x W x H) | 330mm x 100mm x 200mm |
| Weight | 2kg |
| Warranty | 1 year |
Product Description

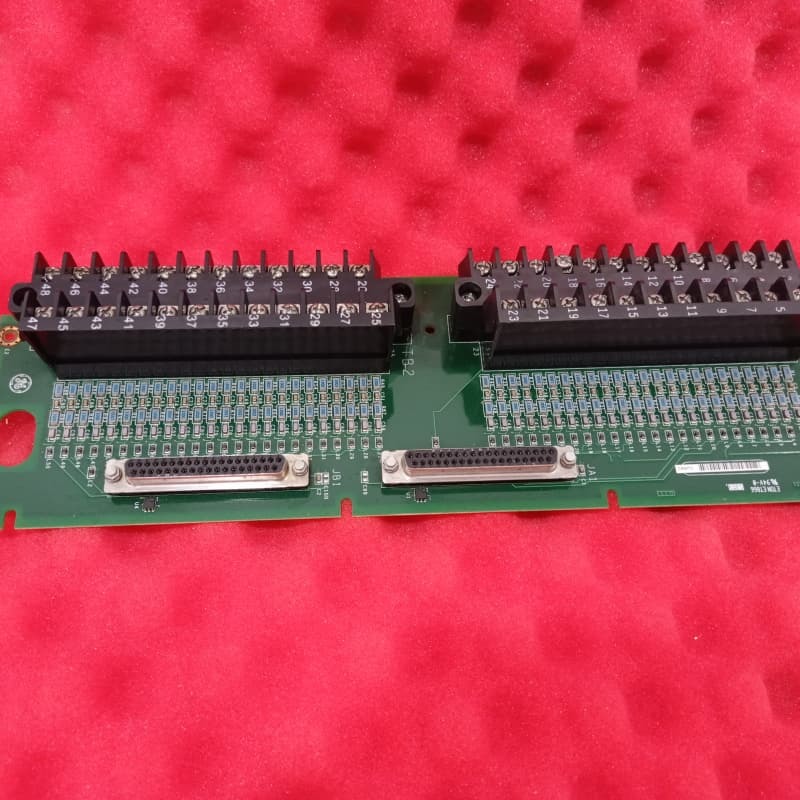

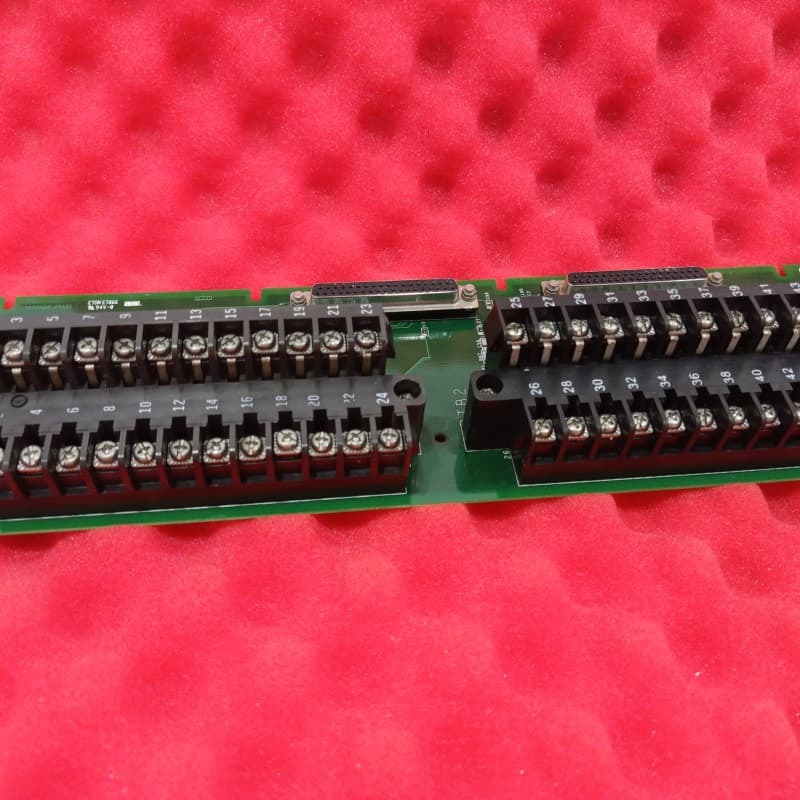

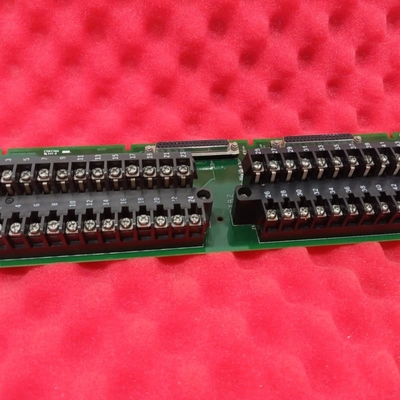

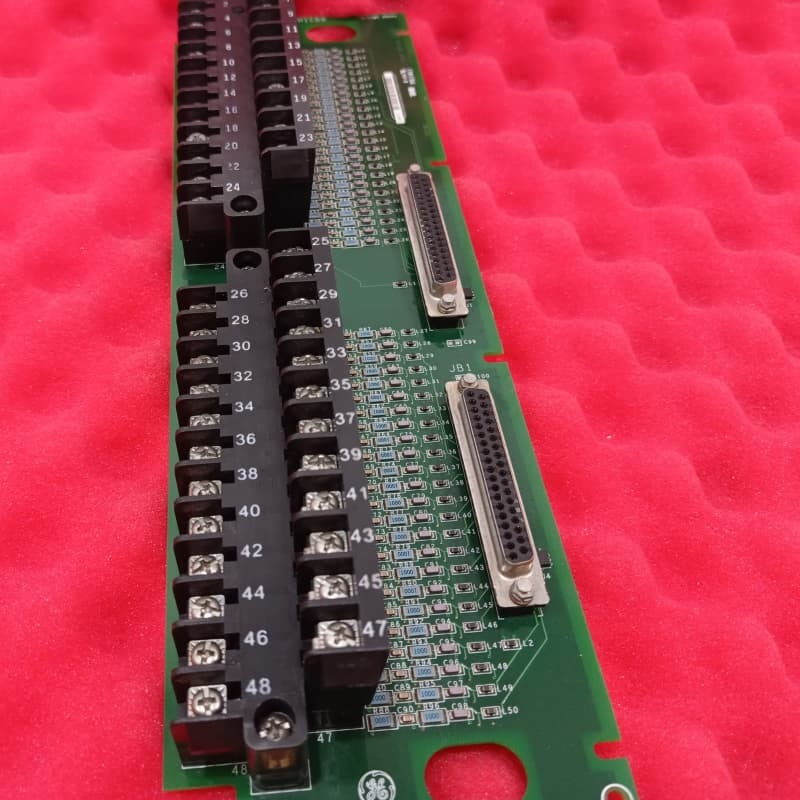

The GE IS200TBTCH1C is a thermocouple Input Terminal Board designed for Turbine Control Systems. This industrial-grade component supports 24 inputs for types E, J, K, S, or T thermocouples, with connections made through two barrier-type terminal blocks.
Key Features
- Supports both grounded and ungrounded thermocouple configurations
- Maximum cable length of 300 meters with 450 ohm resistance
- High-frequency noise suppression for signal integrity
- Dual cold junction references (-30°C to 65°C)
- Interfaces with I/O processors through DC-type connectors
- Supports simplex (2 connectors) or Triple Modular Redundancy (6 connectors) setups
- Analog-to-digital conversion and linearization handled in I/O processor
- Compatible with PTCC I/O packs in Mark VIe systems
- Terminal blocks accept 12 AWG wires with shield terminals for grounding
- Input range of -8.0 to +45.0 mV
- Cold junction fault protection with backup values for continuous operation
